Amazone | ZA-TS Spreaders

ZA-TS SPREADERSAMAZONE

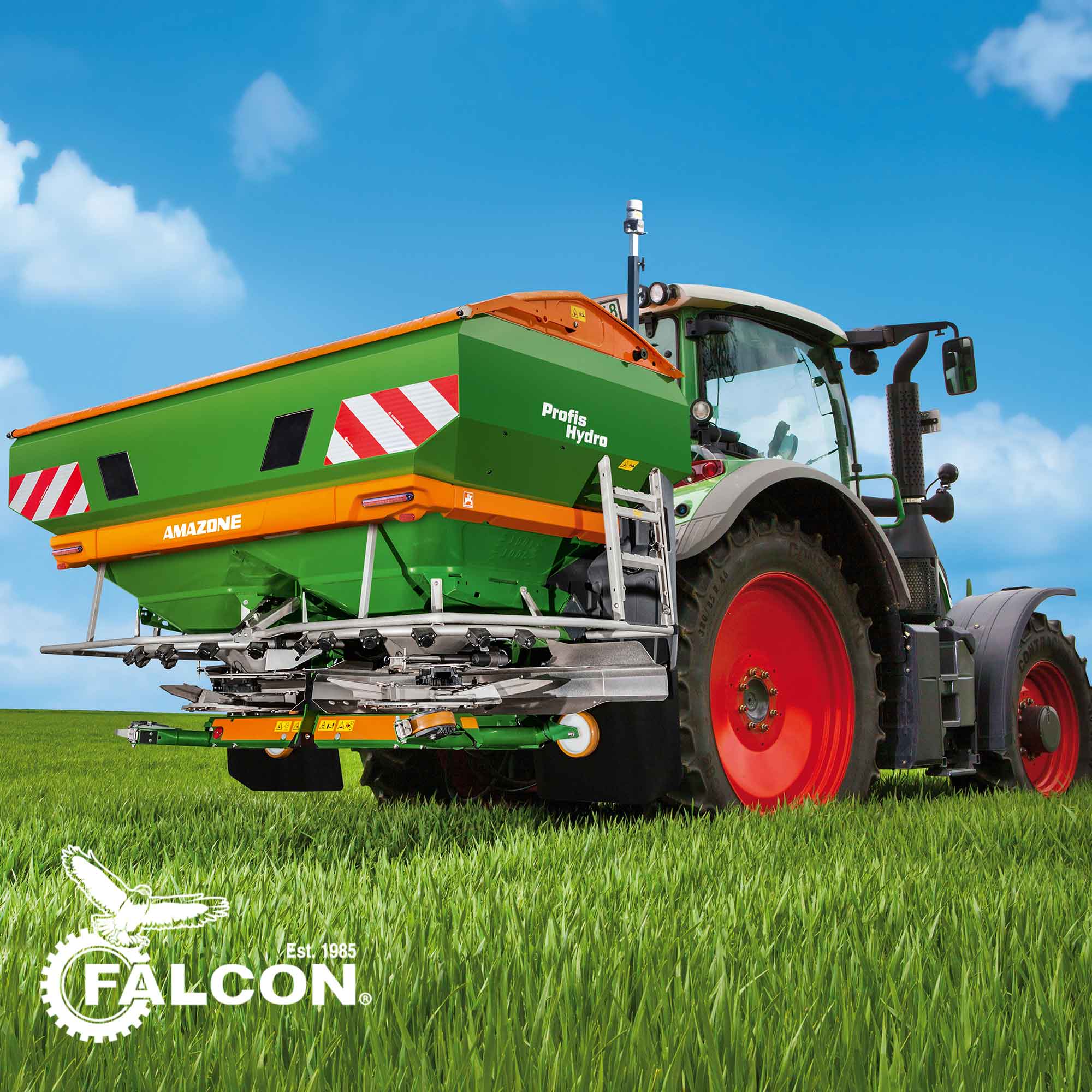

The ZA-TS mounted spreader is available in hopper capacities of 3,200 ℓ and 4,200 ℓ and is equipped with the new TS spreading system. The TS spreading system enables working widths of up to 54 m with, simultaneously, excellent border spread patterns and utomatic part-width section control of up to 128 part-width sections making the ISOBUS ZA-TS spreaders one of the absolutely top performing spreaders. The reliable on-line weighing system, the precise AutoTS, the innovative ArgusTwin technologies and also the many other options makes this spreader a class apart.

  • Description
  • Additional Info

• Precise spread patterns of up to 54 m working width with up to 128 part-width sections.
• Maximum work rates with outputs of 650 kg/min and operational speeds of up to 30 km/h.
• The deep-drawn base hopper without edges and corners ensures the lowest residues and easy cleaning.
• Precise monitoring and control of the application rate via the 200 Hz weighing technology and tilt sensor.
• Soft Ballistic System pro (SBS pro) for an especially gentle handling of fertilisers and less fertiliser damage.
• AutoTS and ClickTS, the disc-integrated border spreading system, electric or manual.
• Electrically driven and fertiliser protecting agitation system with automatic shut-off.
• Automatic adjustment of the lateral distribution via ArgusTwin * and or WindControl * – the most comfortable way of spreading fertiliser.
• Compact, tight-fitting, and operator-friendly hydraulically operated roll-over hopper cover.
• FertiliserService, top-class quality, unique service with more than 25 years’ experience.

Part No Description Working
Width (m)		 Mass (kg) Tractor (kW)
S3007 ZA–TS 3200 Super Profis Hydro ISOBUS (3 200 ℓ) - Max Pay Load 3 200 kg 15–54 765 112
S3008 ZA-TS 4200 Ultra Profis Hydro ISOBUS (4 200 ℓ) - Max Pay Load 4 500 kg 15–54 820 130

* Refer to the price list to see the optional extras.
