Amazone | ZA-V Spreaders

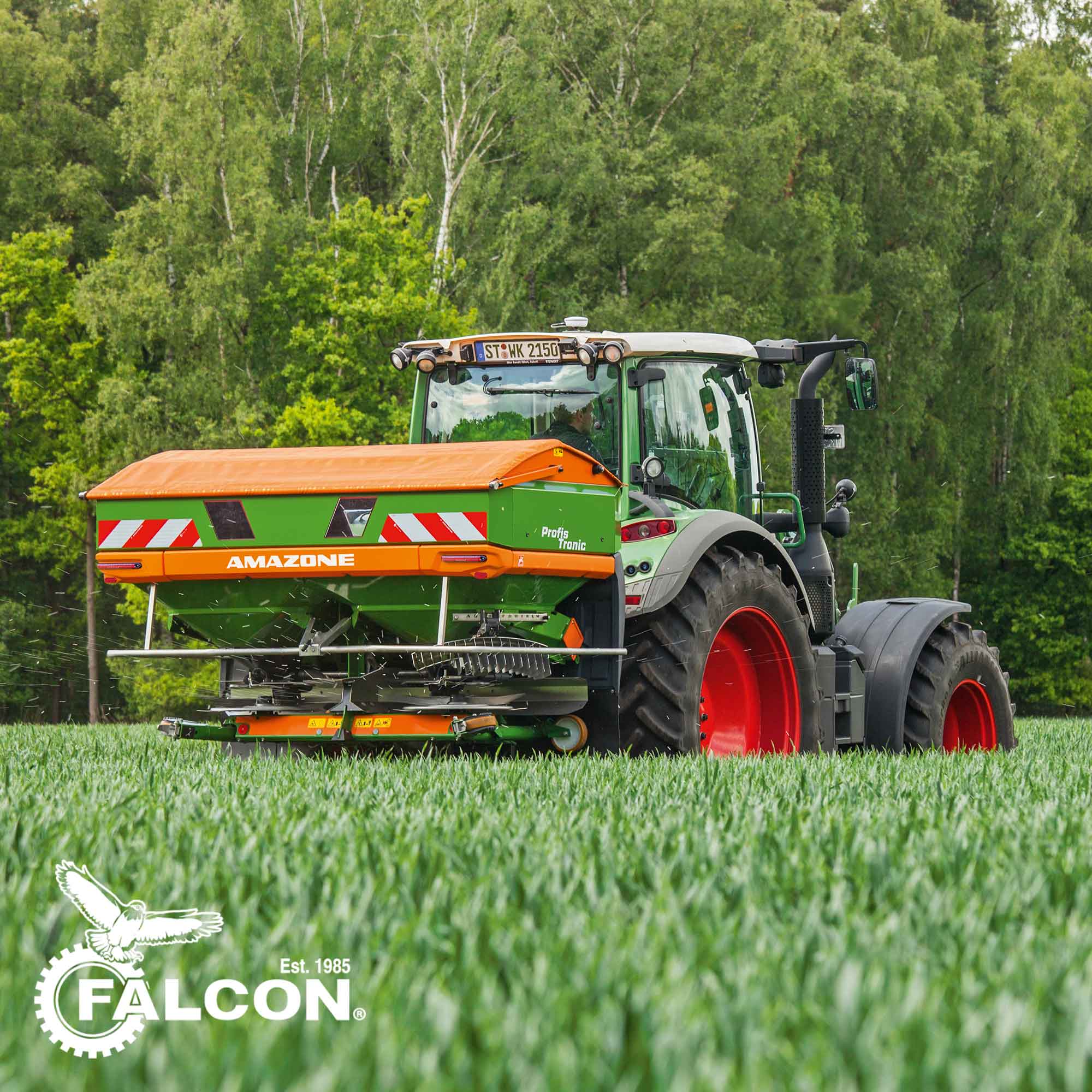

The ZA-V mounted spreader is available in hopper capacities of 1,700 ℓ and 2,000 ℓ (600 ℓ extension as an option for both sizes) and it impresses with its high operational speeds of up to 30 km/h. Thanks to a high spreading capacity of up to 390 kg/min and working widths of up to 36 m, exceptionally high acreage outputs are achieved. ISOBUS communication, reliable on-line weigh cell technology (Profis) and border spreading (Hydro) make the ZA-V one of the most state-of-the-art fertiliser spreaders of its class.

  • Description
  • Additional Info

• Precise spread patterns up to 36 m working width and up to 16 part-width sections.
• Maximum work rates at application rates of 390 kg/min and operational speeds up to 30 km/h.
• Deep-drawn base hopper without corners and edges ensures the lowest residues and easy cleaning.
• Precise monitoring and control of the application rate via the 200 Hz weighing technology and the tilt sensor. *
• Soft Ballistic System (SBS) for an especially gentle handling of the fertiliser and less fertiliser damage.
• Intelligent, fertiliser saving agitator with speed reduction when the shutter slide is closed.
• Spreading discs with exceptionally quick and precisely adjustable spreading vanes using the QuickSet system.
• Hydraulically or electrically actuated Limiter V or Limiter V+ border spreading device for the precise side, border and water course spreading. *
• Compact, tight closing, operator-friendly roll-over hopper cover or swivel hopper cover. *
• FertiliserService, a high-class and unique service with an experience of more than 25 years.

Part No Description Working
Width (m)
Mass (kg) Tractor (kW)
S3005 ZA-V 1700 Super Tronic ISOBUS (1 700 ℓ) - Max Pay Load 3 200 kg 10–36 505 70
S3009 ZA-V 1700 Super Profis Tronic ISOBUS (1 700 ℓ) - Max Pay Load 3 200 kg 10–36 565 70
S3006 ZA-V 2000 Super Profis Hydro ISOBUS (2 000 ℓ) - Max Pay Load 3 200 kg 10–36 634 70

* Refer to the price list to see the optional extras.
