Amazone | UF 02 Mounted Field Sprayers


UF 02 mounted sprayer with tank capacities of either 1 600 or 2 000 ℓ, which is characterised by its extremely operator-friendly and compact design. With the Super-S2 boom in working widths of 15 to 30 m, the UF is a highly-efficient machine. In combination with the FT front tank, the tank capacity of the mounted sprayer can be easily increased by an extra 1 000 ℓ.

  • Description
  • Additional Info

• Lift capacity optimised design with favourable centre of gravity mounting.
• The clever quick coupling system and comfortable parking device make for easy mounting.
• The enclosed SmartCentre and integrated, dust-tight storage compartment prevents any contamination.
• SmartCentre: tailored operator valve chests – from the intuitively-operated Standard-Pack through to the Comfort-Pack with TwinTerminal 3.0.
• The high-performance induction bowl with a suction capacity of up to 150 l/min ensures the minimum fill times and a homogeneous spray agent mixture.
• High-performance self-priming, low maintenance piston diaphragm pump for large application rates even at high spray pressures.

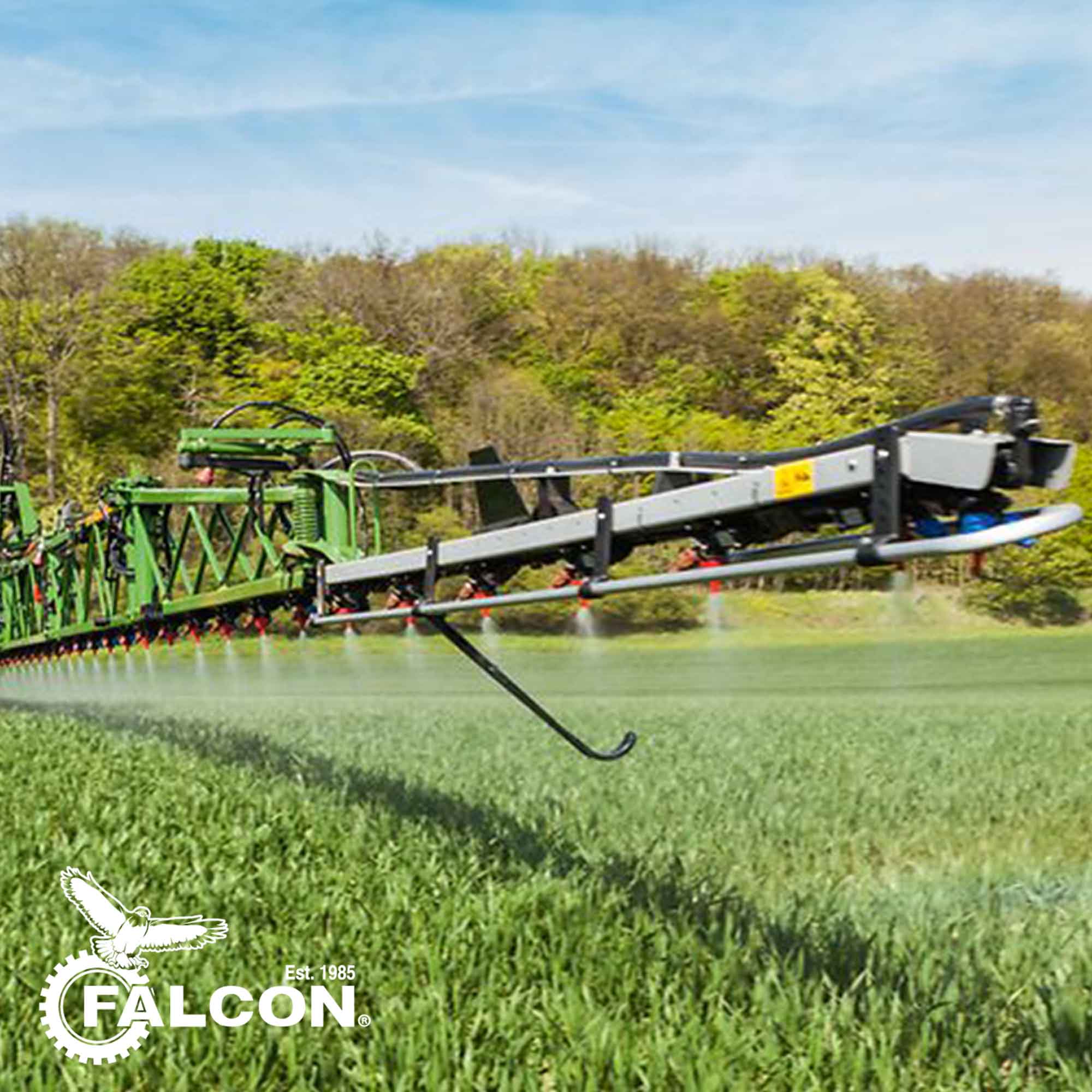

• Outstanding, multi-facet spring suspension for a smooth boom ride.
• DUS and DUS pro pressure recirculation systems for a continuous circulation of the spray liquid.
• 50 cm part-width sections thanks to the AmaSwitch electric individual nozzle control.
• Automatic cleaning programme for perfect cleaning results under all conditions with Comfort Package.
• With FlowControl+ and the FT front tank, the capacity can extend up to 3000 litres – for even more output.

Part No Description Standard Capacity (ℓ) Working
Width (m)
Tractor (kW)
S2021 UF 1602 Sprayer 1 700 15–30 from 90
S2022 UF 2002 Sprayer 2 125 15–30 from 95

* Refer to the price list to see the optional extras.
